Fan Filter FFU Efficient Air Purifier Clean-Shed
New arrival 2021 FFU-1175 Fan Filter Unit FFU Efficient Air Purifier Filter One Hundred Laminar Flow Hood Clean-shedModel: FFU-1175Shape size: 1175*575*320mmSize of filter: 1170*570*69mmAverage wind speed: 0.45m/sNoise: less than 50 dBRated air volume: 1000-1500 cubic/hour (3-speed switch)Power supp......
Send Inquiry
Product Description
New arrival 2021 FFU-1175 Fan Filter Unit FFU Efficient Air Purifier Filter One Hundred Laminar Flow Hood Clean-shed
Model: FFU-1175

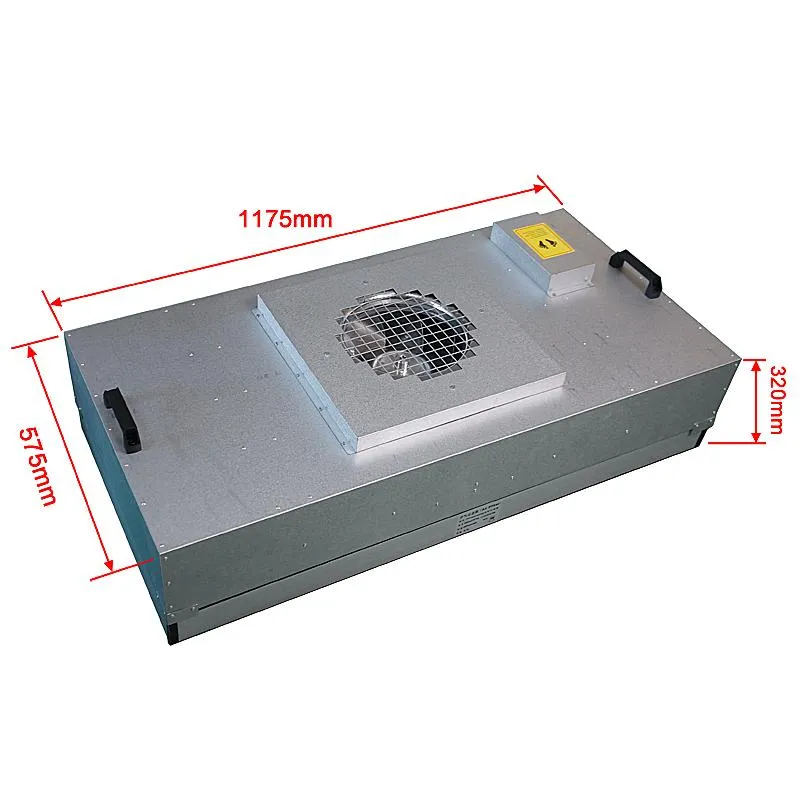

Shape size: 1175*575*320mm

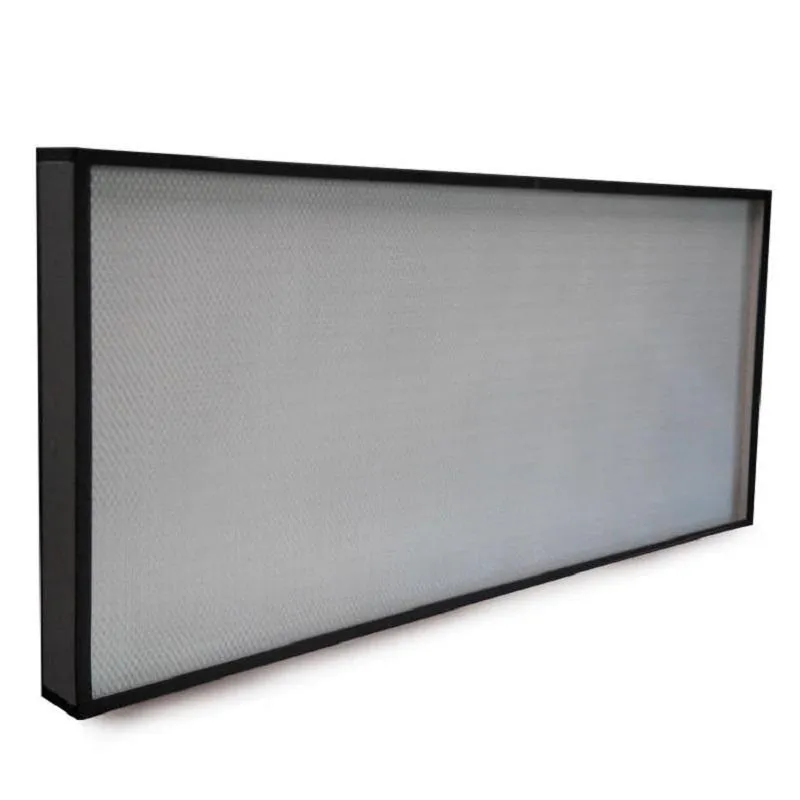

Size of filter: 1170*570*69mm
Average wind speed: 0.45m/s
Noise: less than 50 dB
Rated air volume: 1000-1500 cubic/hour (3-speed switch)
Power supply: single-phase AC200V 50Hz
Power: 120-160W (3-speed switch)
Speed Regulation Function: Three-stage Speed Regulation
Clean efficiency: HEPA99.99% 0.3um
Weight: 35kg (52kg)
Advantage of clean room with FFU:
1. The construction period can be shortened;
2. The degree of cleanness from class 10 to class 1000 can be set and the degree of cleanness can be set at each area;
3. Because the back in the ceiling is a low-pressure, the potential of the leakage is low;
4. Bay method or through the wall method is possible by the arrangement of layout of FFU;
5. The velocity of the air flow can be set at each area;
6. Flexible increase or change of the clean room is possible by the arrangement of FFU.
Model: FFU-1175Shape size: 1175*575*320mm
Size of filter: 1170*570*69mm
Average wind speed: 0.45m/s
Noise: less than 50 dB
Rated air volume: 1000-1500 cubic/hour (3-speed switch)
Power supply: single-phase AC200V 50Hz
Power: 120-160W (3-speed switch)
Speed Regulation Function: Three-stage Speed Regulation
Clean efficiency: HEPA99.99% 0.3um
Weight: 35kg (52kg)
Advantage of clean room with FFU:1. The construction period can be shortened;
2. The degree of cleanness from class 10 to class 1000 can be set and the degree of cleanness can be set at each area;
3. Because the back in the ceiling is a low-pressure, the potential of the leakage is low;
4. Bay method or through the wall method is possible by the arrangement of layout of FFU;
5. The velocity of the air flow can be set at each area;
6. Flexible increase or change of the clean room is possible by the arrangement of FFU.
