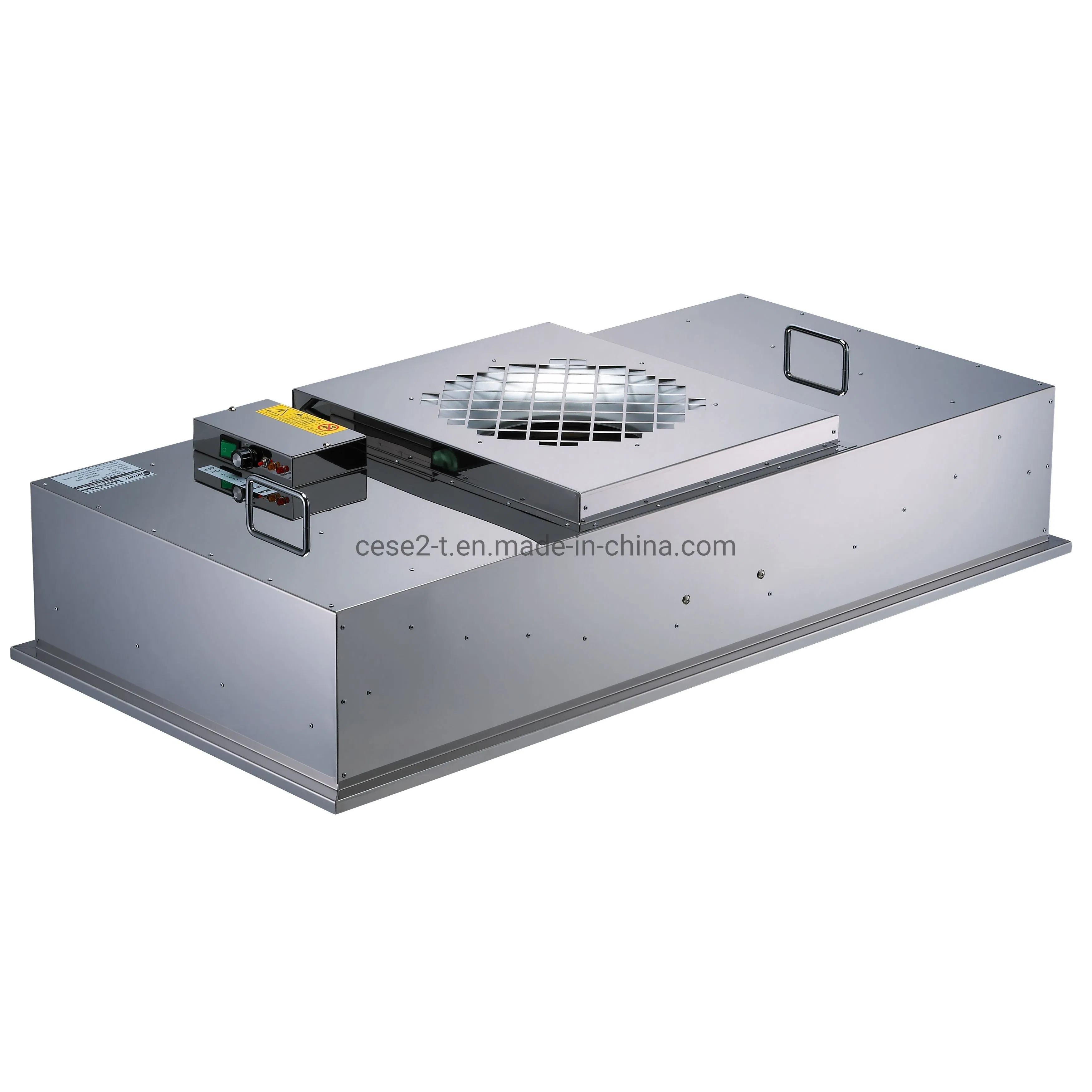

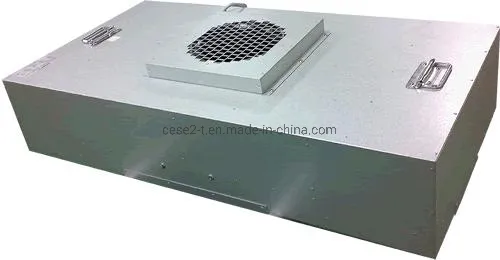

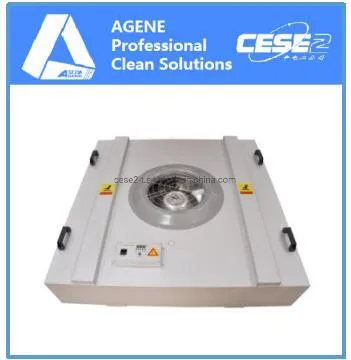

1175 * 1175 *350mm Fan Filter Units to Supply Purified Air to Cleanrooms
1175*1175*350mm Fan Filter Units To Supply Purified Air To CleanroomsFFU Fan Filter Unit is mainly used for purifying the air into the clean area to make sure it can reach required cleanliness class. The fan would draw in the air and then the air goes through the HEPA or ULPA filter. In this way, th......
Send Inquiry
Product Description
1175*1175*350mm Fan Filter Units To Supply Purified Air To Cleanrooms
FFU Fan Filter Unit is mainly used for purifying the air into the clean area to make sure it can reach required cleanliness class. The fan would draw in the air and then the air goes through the HEPA or ULPA filter. In this way, the air will be purified and blow out with 0.45m/s ± 20% adjustable speed.
FFU Feature
Contacts
If you have any questions, please feel free to contact me.
All the information and pictures above are subject to change without further notice.
All rights reserved@ CESE2
FFU Fan Filter Unit is mainly used for purifying the air into the clean area to make sure it can reach required cleanliness class. The fan would draw in the air and then the air goes through the HEPA or ULPA filter. In this way, the air will be purified and blow out with 0.45m/s ± 20% adjustable speed.
| 1 | Dimension(mm) | 1175*1175*350 |
| 2 | Air volume(cbm/h) | 2000 |
| 3 | Airspeed(m/s) | 0.45m/s±20% |
| 4 | Clean grade | 100/100 grade |
| 5 | HEPA Efficiency | 99.99%@0.3um |
| 6 | HEPA size(mm) | 1170*1170*140mm |
| testing point is 1.2m away from the below air speed is 0.35m/s | ||
| 7 | Noise | <56db |
| 8 | Case material | Galvanized and Aluminized sheet/stainless steel/stoving varnish steel plate |
| 9 | Power | 220ACV--50HZ |
| 10 | Rate of work(W) | 250W |
| 11 | Weight(kg) | 60kg |
FFU Feature
- Simple and light design, low height of case, which can save space and can be easy for installation and daily maintenance.

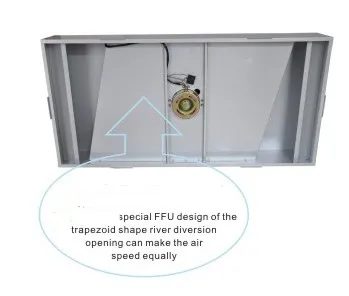

- Particular air inlet and passage design, which can reduce the vibration and pressure drop and noise.
- Metal structure for FFU lining can prevent secondary pollution.
- Installed with diffuser plate to make sure the stable air blowing
- High efficiency motor, three different kinds speed for adjusting,saving the power cost.
- Suitable for class 1 -1000 clean room
