AC 3 Phase 4 Stroke Ricardo Engine Generators
Product Description√ Specializing In diesel Generator 12 Years == √ Factory == √ Own Exporting License ==√ Strict Quality Control == √Competitive Price == √ Own Technology ==√ OEM & ODM == √ Prompt Delivery Time ==......
Send Inquiry
Product Description
Product Description
√ Specializing In diesel Generator 12 Years == √ Factory == √ Own Exporting License ==√ Strict Quality Control == √Competitive Price == √ Own Technology ==√ OEM & ODM == √ Prompt Delivery Time == √ Good Reputation

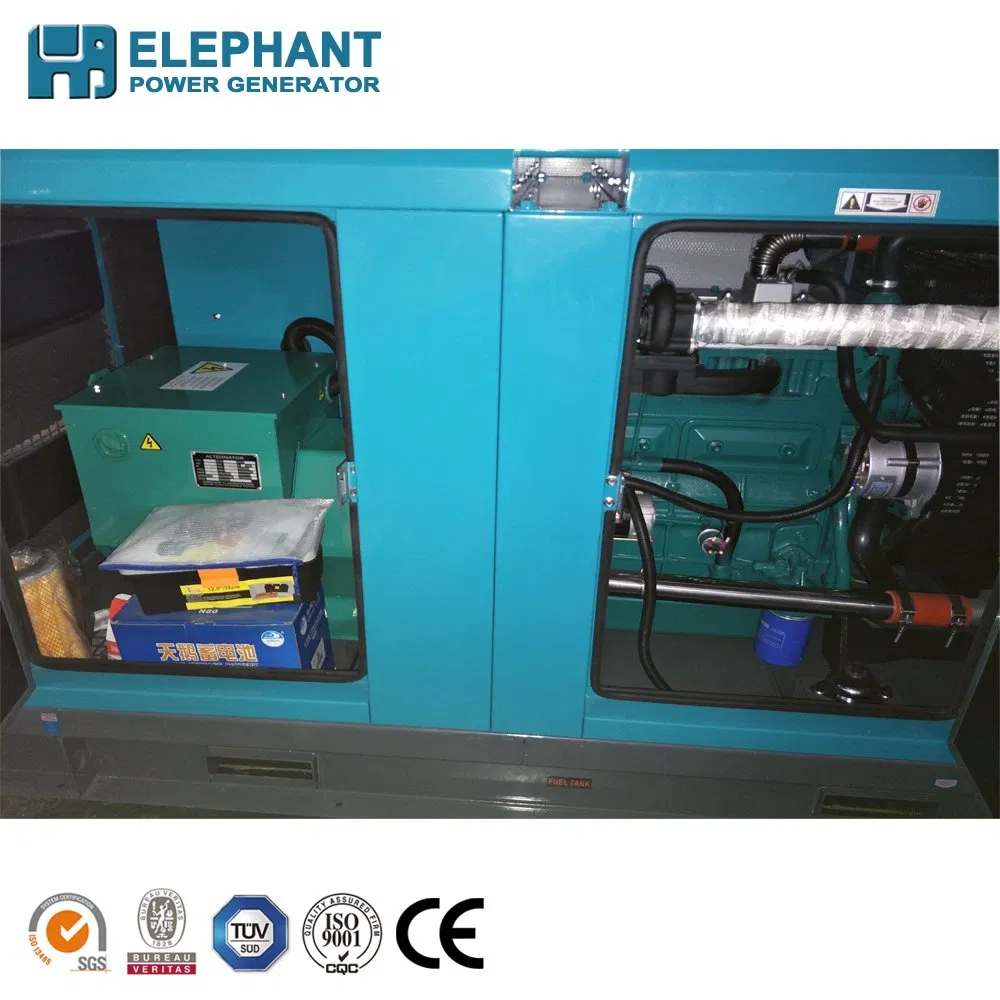

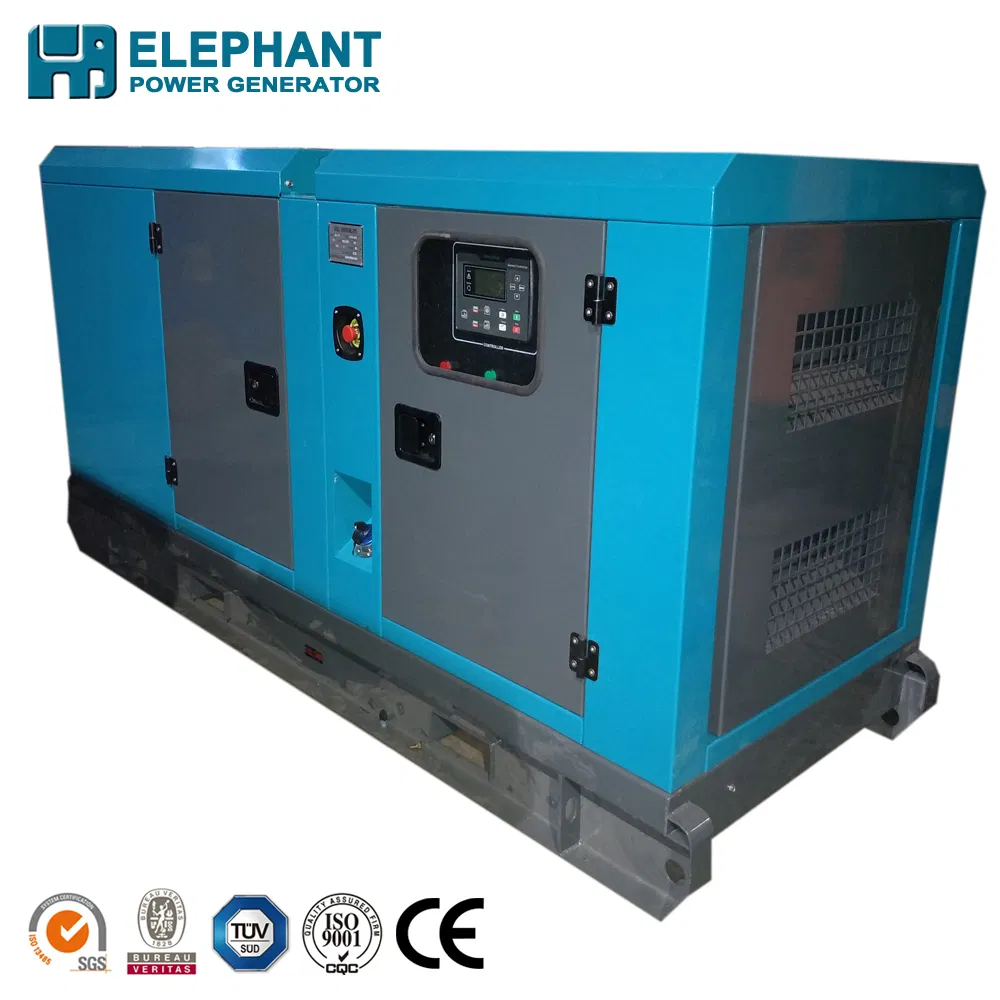

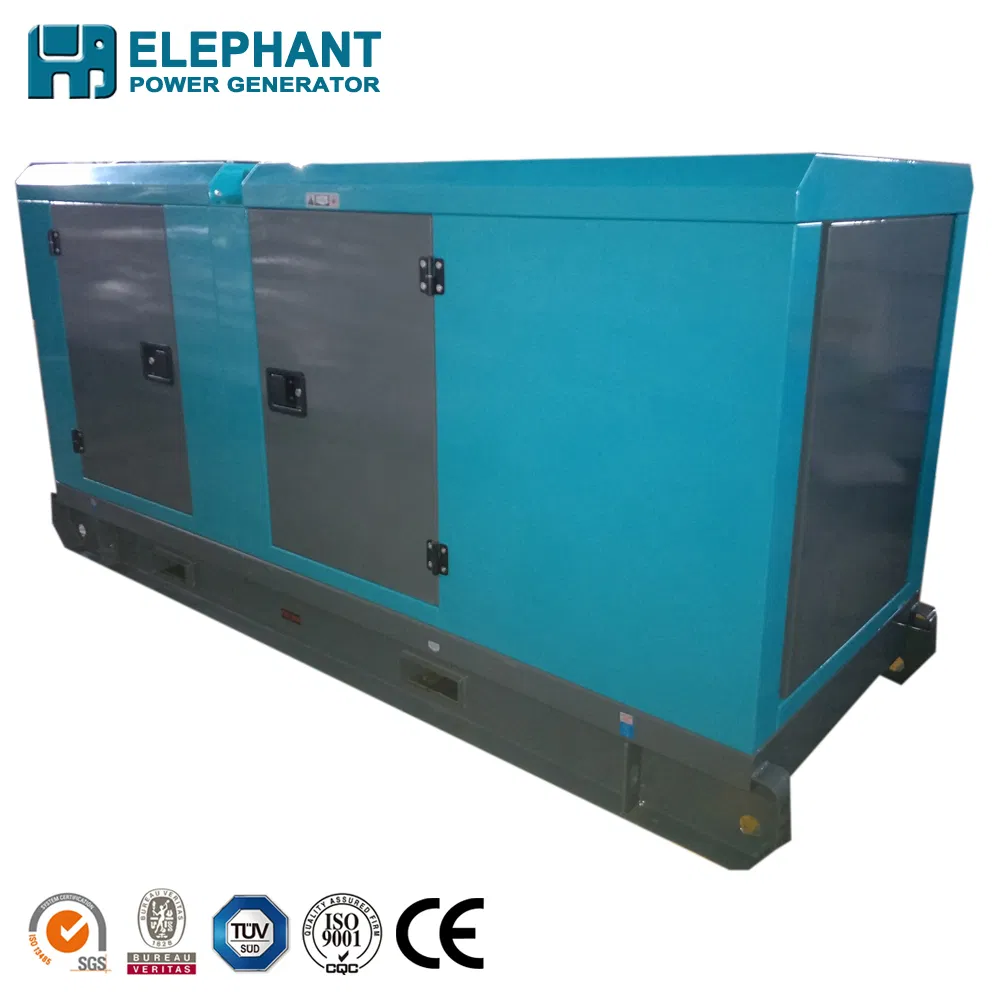

Diesel Generator Manufacture 250kVA Silent Diesel Generators Electirc Generators
√ Specializing In diesel Generator 12 Years == √ Factory == √ Own Exporting License ==√ Strict Quality Control == √Competitive Price == √ Own Technology ==√ OEM & ODM == √ Prompt Delivery Time == √ Good Reputation
Diesel Generator Manufacture 250kVA Silent Diesel Generators Electirc Generators
| 200KW/250KVA RICARDO diesel generator | |
| Genset Specification | |
| Genset Model | BK275 |
| Prime Power(Kw/Kva) | 200KW/250KVA |
| Standby Power(kw/kva) | 220KW/275KVA |
| Frequency | 50Hz |
| Structure type | Open or Soudproof |
| Engine Model | 6126-42D |
| Alternator Model | STG274K |
| Open type DimensionL*W*H(mm) | 2370*950*1600 |
| Weight(Kg) | 1440 |
| Silent type DimensionL*W*H(mm) | 2850*1100*1900 |
| Weight(Kg) | 1890 |
| Engine Detail | |
| Manufacturer | Weifang Ricardo Engine Co., Ltd |
| Model | 6126-42D |
| Type | vertical,6 cylinder,in-line,water-cooled,four-stroke |
| Governor | electrical |
| Bore*Stroke | 114*135mm |
| Displacement | 6.75L |
| Compression ratio | 16.5:1 |
| Alternator Detail | |
| Model | STG274K |
| Output power(Kw/Kva) | 200KW/250KVA |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | ≤1% |
| Total haarmonics (TGH/THC) | ≤3% |
| Wave form:Nema=TIF | ≤50 |
| Wave form:I.E.C=THF | ≤2% |
| Bearing | single |
| Coupling | Direct |
