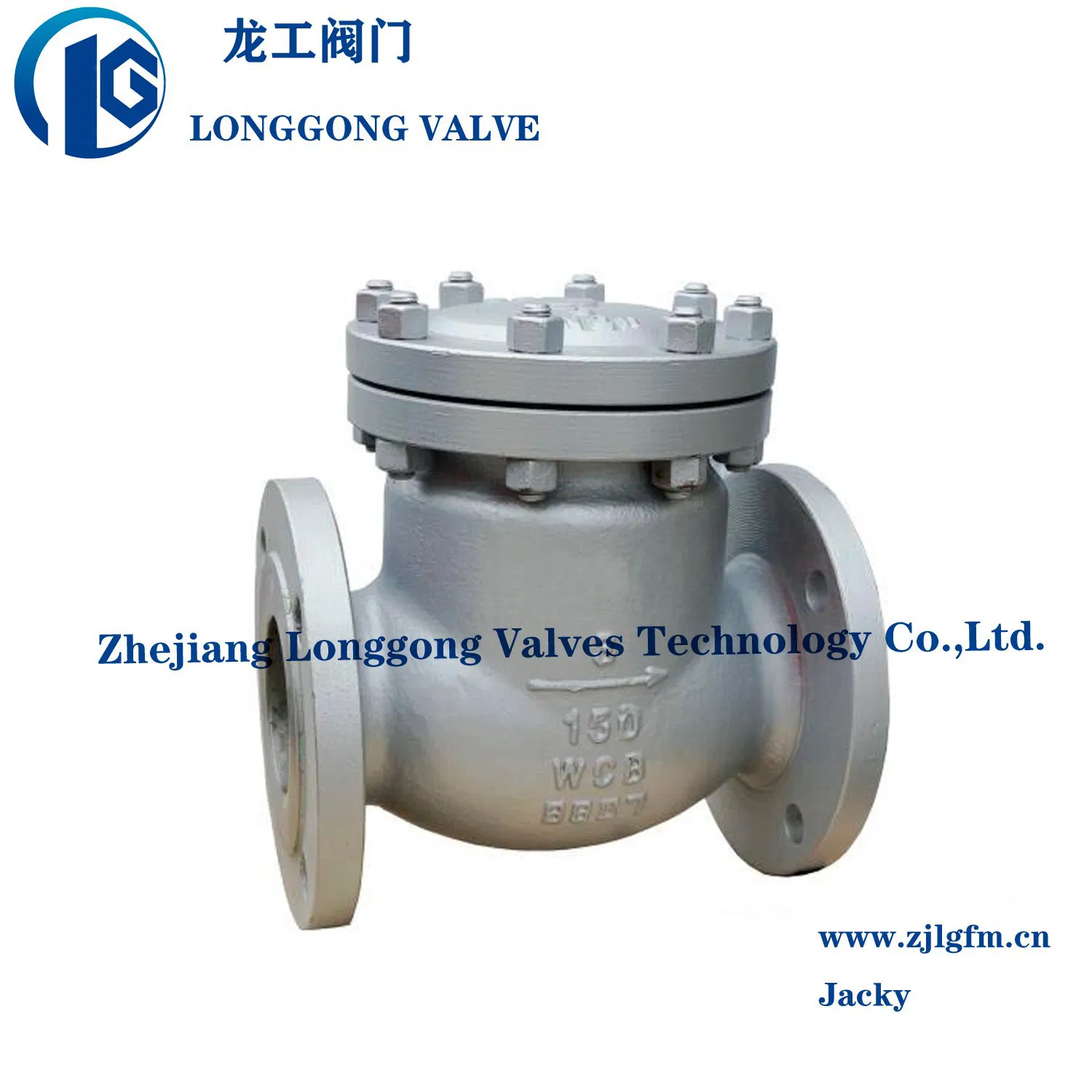

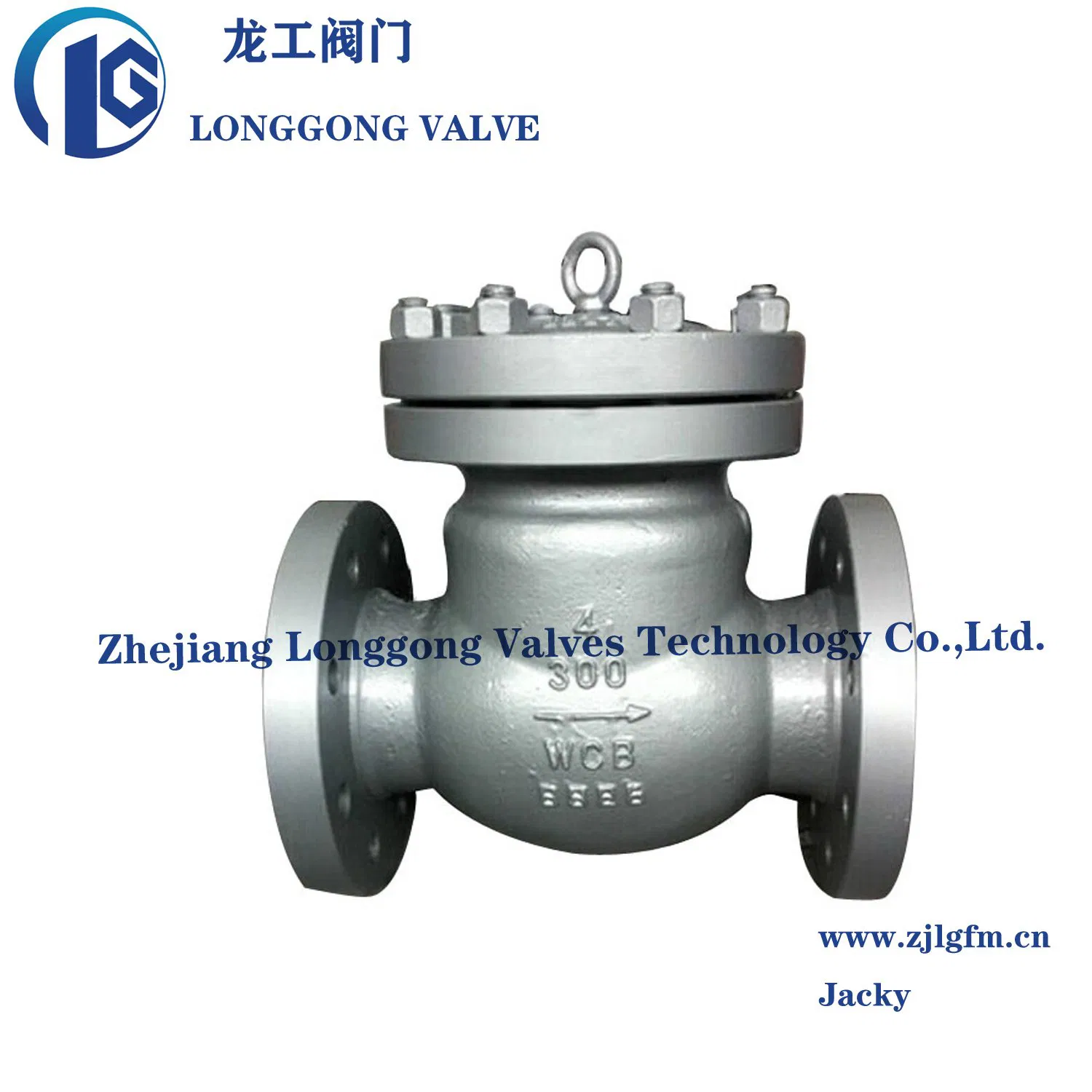

API 6D Wcb/SS304/SS316 Flanged Swing Check Valves

FEATURES&BENEFITS2"~48" (DN50~DN1200)W. P.: Class150-2500W. T.:-20ºC ~400ºC (-4ºF~752ºF)Design:BS 1868Flange Dimension:ASME B16.5Face to Face:ASME B16.10Inspection and test :API 598/API 6DMaterial: WCB, WC6, WC9, LCB,CF8, CF3, CF8M, CF3M, CN7M, Monel......

Send Inquiry

Product Description

FEATURES&BENEFITS
  1. 2"~48" (DN50~DN1200)
  2. W. P.: Class150-2500
  3. W. T.:-20ºC ~400ºC (-4ºF~752ºF)
  4. Design:BS 1868
  5. Flange Dimension:ASME B16.5
  6. Face to Face:ASME B16.10
  7. Inspection and test :API 598/API 6D
  8. Material: WCB, WC6, WC9, LCB,CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast. etc.
  9. Dics and Stem: WCB,SS304, SS316,SS304L,SS316L,SS410,SS416.etc
  10. Offshore /Oil /Gas /Chemical /Petrochemical Pulp /Paper /Water /Wastewater /Marine
ITEMPARTSMATERIAL
Trim1Trim5Trim8
1BODYASTM A216-WCB
2SEATASTM A105+Cr13ASTM A105+STL#6ASTM A105+STL#6
3DISCASTM A105+Cr13ASTM A105+STL#6ASTM A105+Cr13
4HINGEASTM A216-WCB
5DISC WASHERASTM A276-410
6DISC NUT
7DISC NUT PIN
8HINGE PINASTM A182-F6a
9STUDASTM A193-B7
10NUTASTM A194-2H
11GASKETSPW SS 304+GRAPHITE
12BONNETASTM A216-WCB
13EYEBOLTCARBON STEEL
14PLUGASTM A276-410
15WASHERASTM A276-304
16NAMEPLATESS 304
Dimension:
DNdCLASS 150 CLASS 300CLASS 600
L HLHLH
5051203 132267144292170
6564216147292169330178
8076241176318210356246
100102292198356260432290
125127330255400295508320
150152356320445326559360
200203495380533380660430
250254622440622440787502
300305699480711520838554
350337787530838540889595
400387864580864588991680
4504389786189786701092778
50048997865710167201194970
6005911295760134685013971100
65063312958401346920--
700684144892014991150--
750735152498015941260--
API 6D Wcb/SS304/SS316 Flanged Swing Check ValvesAPI 6D Wcb/SS304/SS316 Flanged Swing Check ValvesAPI 6D Wcb/SS304/SS316 Flanged Swing Check ValvesAPI 6D Wcb/SS304/SS316 Flanged Swing Check ValvesAPI 6D Wcb/SS304/SS316 Flanged Swing Check Valves

API 6D Wcb/SS304/SS316 Flanged Swing Check Valves

FAQ
1 Are you a factory or trading company?
We are a factory specialized in manufacturing valves and ftting over 10 years.We have our own stainless steel foundry in Fujian province.
And we have got ISO9001&TS certificate of Manufacturing and processing of valves and fttings.

2 Where are the main markets for your products?
We hope to make business with companies from all over the world. And for now, our valves and fttings have
Been exported to especially in North America, South America, South Asia, Europe and Middle East.

3 Do you have a minimum quantity of the products?
No, we will build business with you with even 1PC. We believe this cooperation will be a long- term relationship for our high quality, competitive price and good after-sale service.

4 Are samples available to be sent with free?
It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.

5 Can you print our Logo on the valves?
Yes, we can totally produce products according to your special request, even manufacture it base on your drawing.

6 What is your lead time?
It's around 15 days normally. If we have the products in stock, it will be about one week.

7 what is your payment term?
T/T 30% down payment, balance to be paid before shipment.

8 How can I check your factory situation w hile it's difficult for me to come to China?
We have photos and videos on our website and facebook, It shows every step of the manufacturing.

9 How can you guarantee the quality of products?
Firstly, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or ftting we sell is qualified and release the test mill certificate. If possible, We can also send you the sample for checking. Regarding the details, we can discuss if you want to know more about it.
