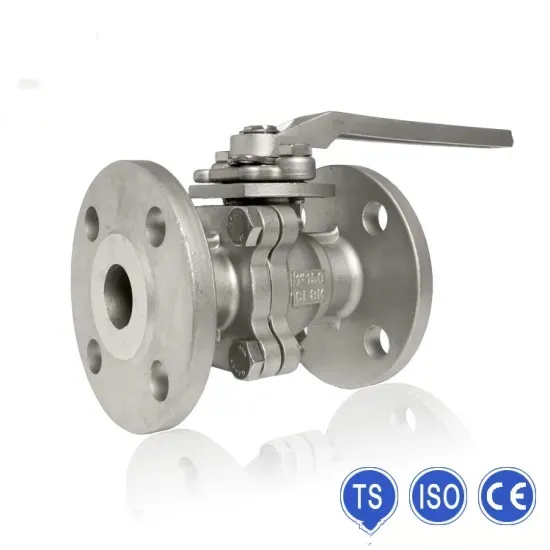

Flange End ANSI Mounting Pad 2-PC Ball Valve
Features-Full port,1/2"-6"(DN15-DN150)-W.P.CLASS 150/300-W.T:-20ºC-180ºC-Investment casting- Blow-out proof stem-Anti-static device(option)-Design:ASMEB16.34,AP1608,API6D-Flange dimension:ASME B16.5-Face to face:ASME B16.10-Inspection&testing:AP1598 MATERIALSNOPARTSM......
Send Inquiry
Product Description
Features
-Full port,1/2"-6"(DN15-DN150)
-W.P.CLASS 150/300
-W.T:-20ºC-180ºC
-Investment casting
- Blow-out proof stem
-Anti-static device(option)
-Design:ASMEB16.34,AP1608,API6D
-Flange dimension:ASME B16.5
-Face to face:ASME B16.10
-Inspection&testing:AP1598
-Full port,1/2"-6"(DN15-DN150)
-W.P.CLASS 150/300
-W.T:-20ºC-180ºC
-Investment casting
- Blow-out proof stem
-Anti-static device(option)
-Design:ASMEB16.34,AP1608,API6D
-Flange dimension:ASME B16.5
-Face to face:ASME B16.10
-Inspection&testing:AP1598

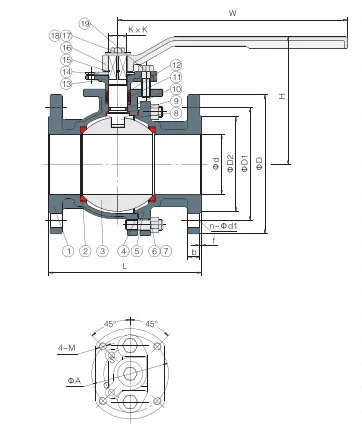

MATERIALS
| NO | PARTS | MATERIAL | ||||
| 1 | BODY | WCB | CF8 | CF8M | ||
| 2 | SEAT | PTFE | ||||
| 3 | BALL | CF8 | CF8 | CF8M | ||
| 4 | GASKET | PTFE | ||||
| 5 | BONNET | WCB | CF8 | CF8M | ||
| 6 | BOLT | 304 | ||||
| 7 | NUT | 304 | ||||
| 8 | STEM | 304 | 304 | 316 | ||
| 9 | STEM WASHER | PTFE+25% GF | ||||
| 10 | O-RING | FPM | ||||
| 11 | PACKING | PTFE | ||||
| 12 | WEAR WASHER | PTFE+25% GF | ||||
| 13 | GLAND | CF8 | ||||
| 14 | STOPPER | 304 | ||||
| 15 | CIRCLIPS FOR SHAFT | 304 | ||||
| 16 | HANDLE | WCB | ||||
| 17 | WAHSER | 304 | ||||
| 18 | BOLT | 304 | ||||
| 19 | BOLT | 304 | ||||
| Shipment | |
| Delivery Time | 15~20 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, PayPal, etc. |
| 30% prepayment, 70% balance paid before shipping or against copy of BL | |
| Warranty | 18 Months after leaving factory |
| Advantage | OEM/ODM is applicable |
| Others | We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer |
| Having our own factory and professional technicians,we welcome OEM orders as well.We can design and produce the specific product you need according to your detail information |
| After-sale Service |
| Our enthusiastic and friendly customer service representatives are ready to assist with any questions or problems |
