China DIN 1587 Gr. 7 Hexagon Domed Cap Titanium Nuts for Chemical Use

Product Description

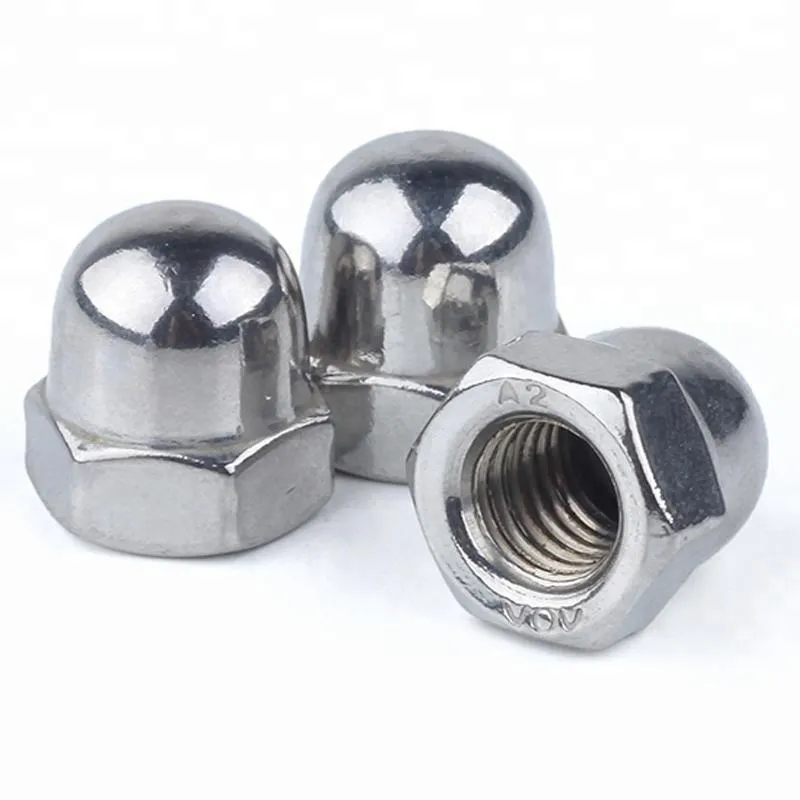

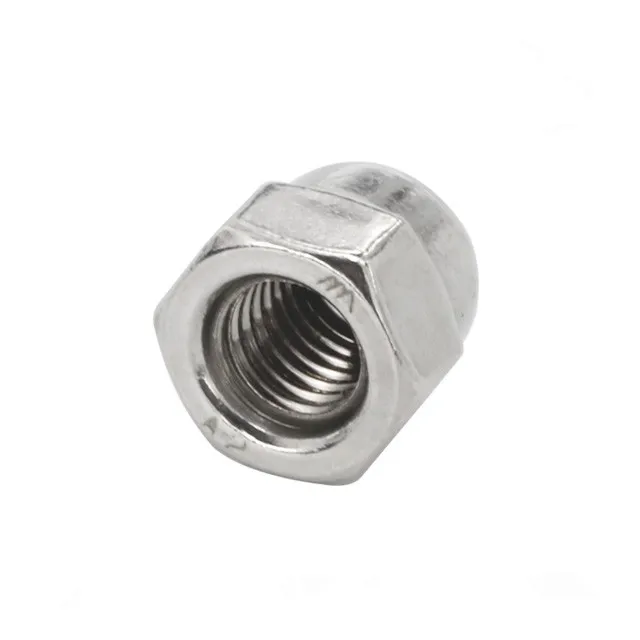

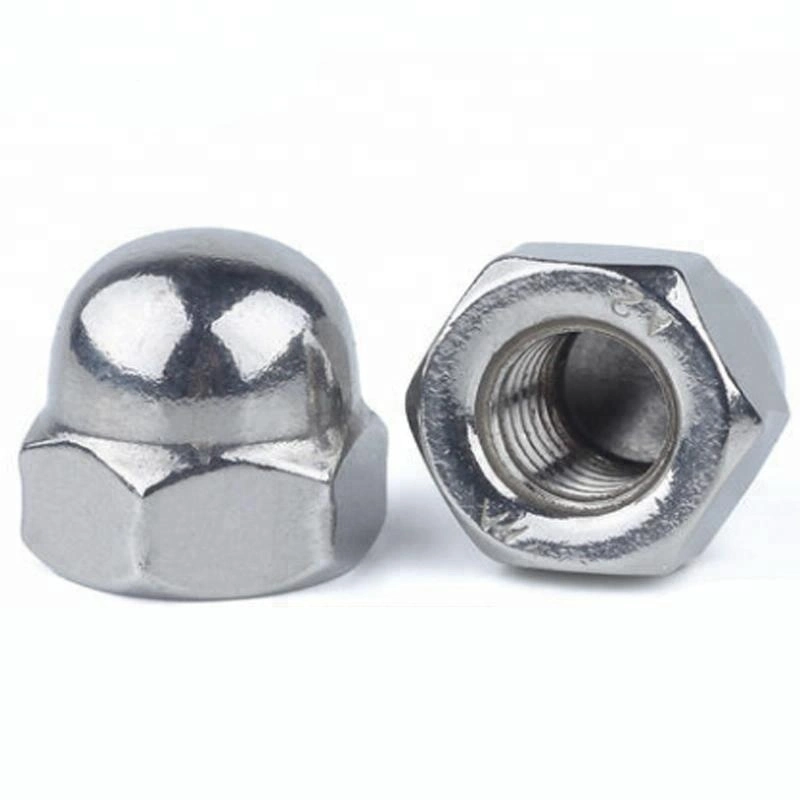

DIN 1587 Gr.7 hexagon domed cap titanium nuts For Chemical Use

AVAILABLE SIZES
M2~M64,#10~21/2

STANDARD
DIN 912, DIN913, DIN916, DIN 933, DIN 934, DIN963, DIN 795, DIN 796, DIN 7991, DIN 6921, ISO 7380, ISO 7984, ASME B18.2.2, ASTM B18.2.1, ASME B18.3, etc…

Type

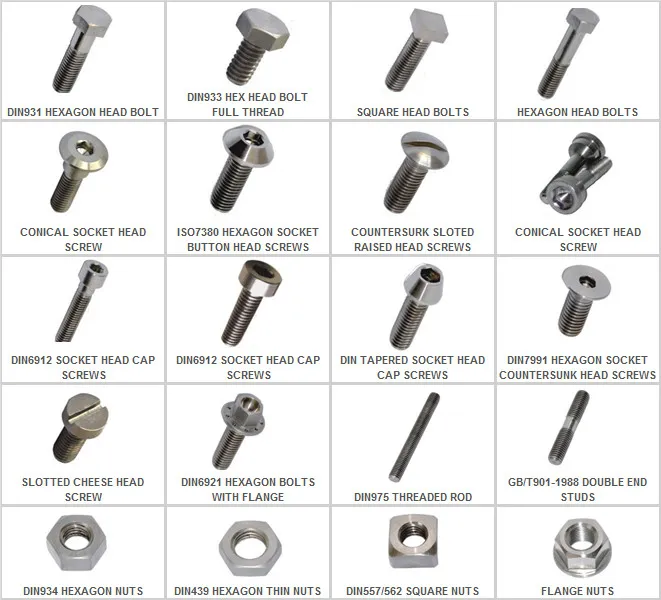

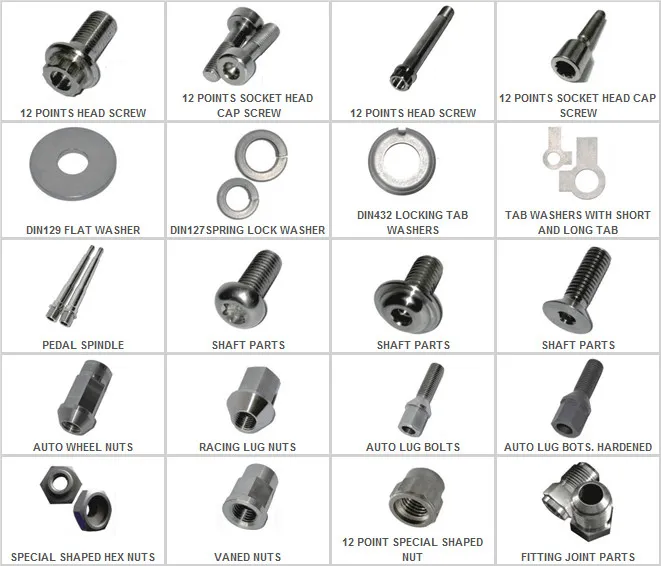

bolts, washers, nuts, thread rods

EXAMPLE APPLICATIONS
Bicycle,Motorcycle,MedicalIndustry,Surgicalimplants,Chemicalindustry,Aerospace,Spaceflight,Airplane,Ship,Auto,Cars,Wheelchair,Sports,Military etc.

DIN 1587 Gr. 7 Hexagon Domed Cap Titanium Nuts for Chemical Use

STANDARD	CHEMICAL COMPOSITION (weight %, max or range)											MECHANICAL PROPERTIES (min)
ASTM	UNS No	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Tensile	Yield	El.	Red.
ASTM	UNS No	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Mpa	Mpa	%	%
GR 1	R50250	0.03	0.08	0.015	0.2	0.18						240	138	24	30
GR 2	R50400	0.03	0.08	0.015	0.3	0.25						345	275	20	30
GR 3	R50550	0.05	0.08	0.015	0.3	0.35						450	380	18	30
GR 4	R50700	0.05	0.08	0.015	0.5	0.4						550	483	15	25
GR 5	R56400	0.05	0.08	0.015	0.4	0.2	5.5-6.75	3.5-4.5				895	828	10	25
GR 7	R52400	0.03	0.08	0.015	0.3	0.25			0.12-0.25			345	275	20	30
GR 9	R56320	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0				620	483	15	25
GR 12	R53400	0.03	0.08	0.015	0.3	0.25				0.2-0.4	0.6-0.9	483	345	18	25
GR 23	R56401	0.03	0.08	0.0125	0.25	0.13	5.5-6.5	3.5-4.5				828	759	10	15

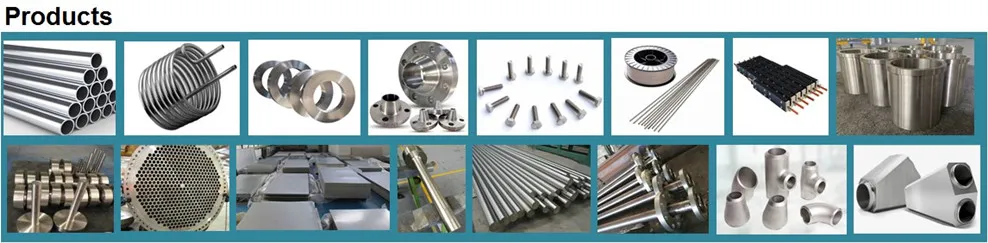

TITANIUM MATERIALS SUPPLY SCOPE
TITANIUM GRADE	UNS NO.	WIRE	BAR	SHEET	PLATE	TUBE	PIPE	FITTING	FORGING	FASTENER
Ti Grade 1	R50250	√	√	√	√	√	√	X	√	√
Ti Grade 2	R50400	√	√	√	√	√	√	√	√	√
Ti Grade 3	R50550	√	√	√	√	X	X	X	√	√
Ti Grade 4	R50700	√	√	√	√	X	X	X	√	√
Ti Grade 5 (6Al 4V)	R56400	√	√	√	√	X	X	X	√	√
Ti Grade 7 (0.2Pd)	R52400	√	√	√	√	√	√	√	√	√
Ti Grade 9 (3Al 2.5V)	R56320	√	√	√	√	√	X	X	√	√
Ti Grade 11	R52250	√	√	√	√	√	√	X	√	√
Ti Grade 12 (0.3Mo 0.8Ni)	R53400	√	√	√	√	√	√	√	√	√
Ti Grade 17	R52252	X	√	√	√	√	√	X	√	√
Ti Grade 23 (6Al 4V Eli)	R56401	√	√	√	√	X	X	X	√	√
Notes 1) √-Available, X-Unavailable
Notes 2) For other grades like Ti6Al2Sn4Zr2Mo, Ti6Al6V2Sn, Ti8Al1Mo1V, Ti6Al2Sn4Zr6Mo, Ti15V3Cr3Sn3Al, please contact us for details.
Notes 3) It may differs a little for materials in different sizes, please also contact us.
